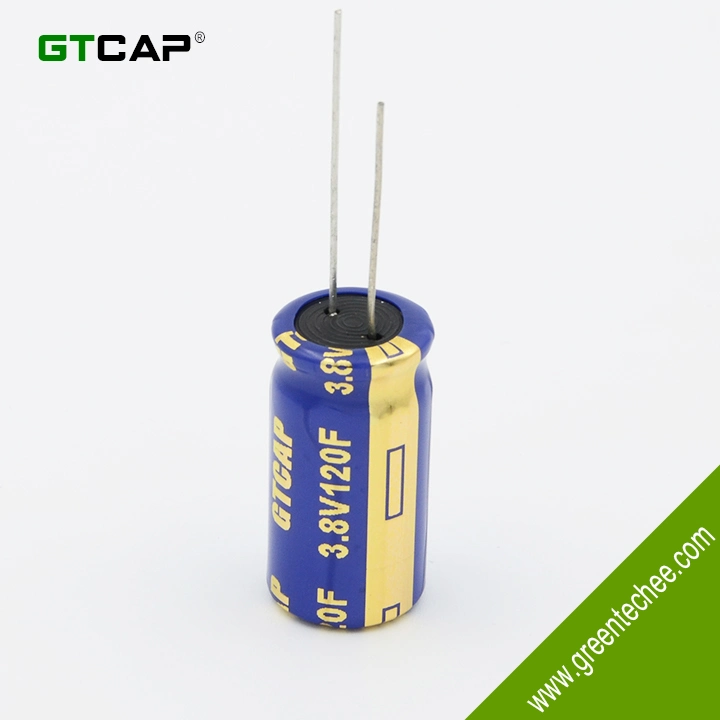

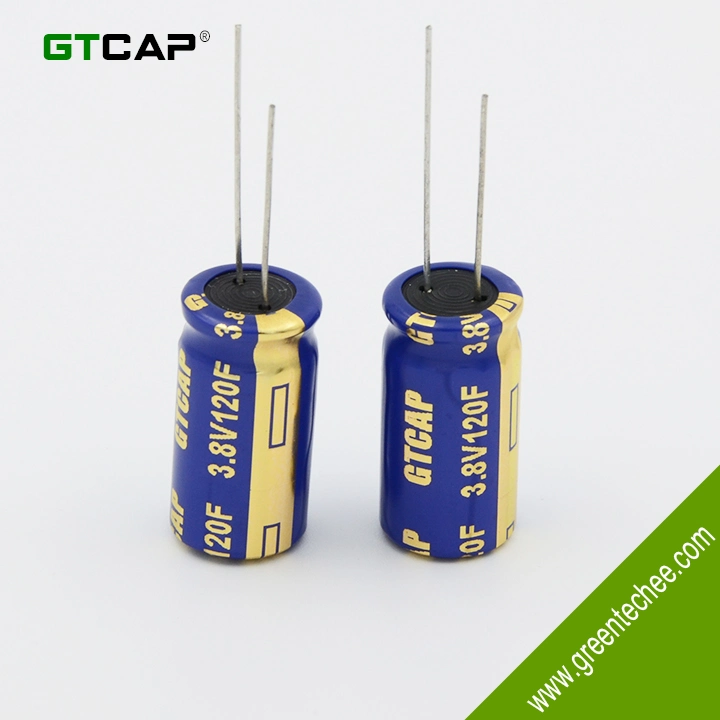

GTCAP 3.8V 120F Hybrid Farad Capacitor Battery for Energy Meters
Feature:
- Operate temperature: -15°C~+70°C/85°C(3.5V)
- Optimum Working Voltage Rang: 3.8-2.5V
- Cycle life: 500,000 times.
- High Energy Density
- CE RoHs REACH compliant.
- 1 year quality warranty.
- Safe for shipping by sea, air, express.
Main Application:
- Power back off in smart meters(gas meters, water meters, energy meters, electricity meters).
- Back up power supply in carcorder.
- Replace battery in solar road stud, caution light, wall LED light.
Technical Parameter:
| Part Number | Voltage (V/DC) | Cap.(F) | Maximum ESR(mΩ) | Max. DCL (μA) | Max. Continous Current | Max. Peak Current (A) | Max. Energy Storage (Wh) | Weight (g/pc) | Size (mm) | Lead Space P(mm) | |
| AC@1kHz | DC | ||||||||||
| GTSPL-3R8-106MR | 3.8 | 10 | 0.8 | 0.4 | 2 | 0.075 | 0.5 | 0.011 | 1.5 | Φ8*14 | 3.5 |
| GTSPL-3R8-256MR | 3.8 | 25 | 0.65 | 0.3 | 2.5 | 0.125 | 0.8 | 0.028 | 1.8 | Φ8*20 | 3.5 |
| GTSPL-3R8-306MR | 3.8 | 30 | 0.55 | 0.25 | 3.5 | 0.15 | 1.0 | 0.034 | 2.5 | Φ10*16 | 5.0 |
| GTSPL-3R8-706MR | 3.8 | 70 | 0.25 | 0.1 | 8 | 0.35 | 3.0 | 0.08 | 3.8 | Φ10*25 | 5.0 |
| GTSPL-3R8-127MR | 3.8 | 120 | 0.2 | 0.08 | 13 | 0.6 | 5.0 | 0.136 | 5.0 | Φ12.5*25 | 5.0 |
| GTSPL-3R8-227MR | 3.8 | 220 | 0.1 | 0.06 | 20 | 11 | 10 | 0.25 | 9 | Φ16*25 | 7.5 |
