Basic Info.
Model NO.
GTSMG-48V5000FKS
Type
Supercapacitor
Application
General Purpose, Power
Packaging Type
Through Hole
Capacitance
1KWH
Structure
Fixed Capacitor
Manufacturing Material
Electrolytic
Electrolyte
Electrolytic
Usage
Low Frequency Coupling
Tuning
Graphene Capacitor
Filter
Graphene Capacitor
Trademark
GTCAP
Transport Package
Tray
Specification
GTSMG-48V1KWHKS
Origin
Shanghai
HS Code
8532290000

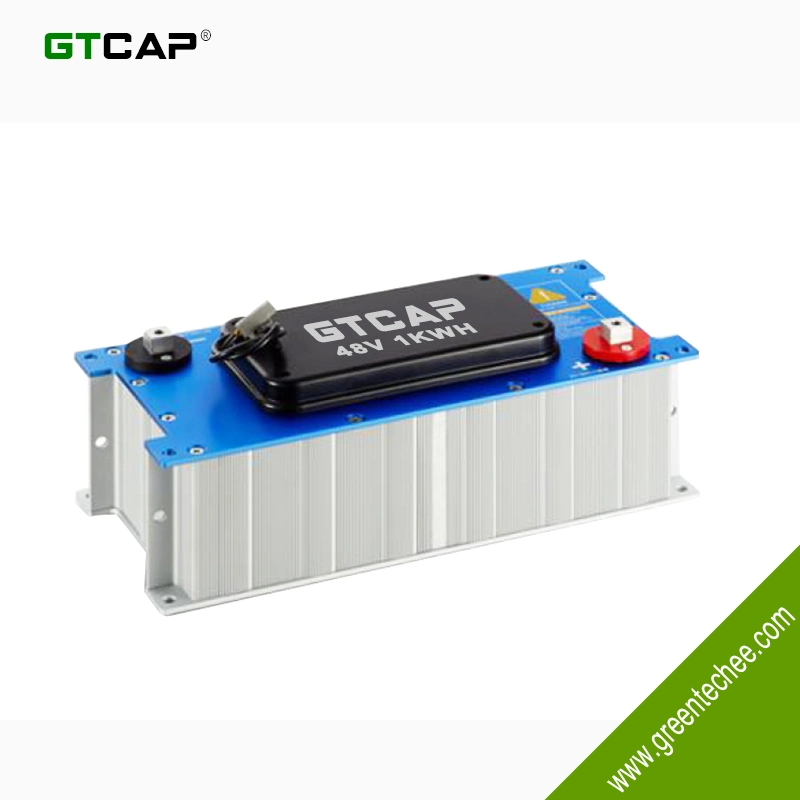

Product Description
- Features:
- Graphene super capacitor cells
- Safe,incombustible,inexplosive
- High energy density 55Wh/Kg
- Long life over 50,000 times duty cycles
- Quality guaranteed 10 years
- Wide temperature range -40ºC~+70ºC
- Ultra-low ESR<20mΩ
- Environment friendly RoHS compliant
- Maintenance free
- Including balance and protect PCB
- Applications:
- Power supply for energy storage trolley buses
- Power supply for energy storage tram
- Back-up power for railway transit
- Smart grid
- Solar energy storage system
- Mass transportation braking energy recovery system
- Heavy duty machinery
- Renewable energy
| No. | Part Number | GTSMG-48V5000FKS |
| 1 | Optimum Working Voltage Range | 48V~28V/DC |
| 2 | Surge Voltage | 48.6V/DC |
| 3 | Capacitance | 5000F |
| 4 | Energy Storage | 1KWH |
| 5 | Energy Density | 55Wh/kg |
| 6 | Capacitance Tolerance | -10% to +10% |
| 7 | ESR/AC @1KHz | <20mΩ |
| 8 | Rated Charge-discharge Current | 25A |
| 9 | Max.Charge Current | 50A |
| 10 | Max.Discharge Current | 75A |
| 11 | Pules Current <3s | 150A |
| 12 | Max. Leakage current | 5mA |
| 13 | Operating Temperature | -40ºC~+70ºC |
| 14 | Best Storage Temperature | -10ºC~+45ºC |
| 15 | Weight | 18Kg |
| 16 | Cycle Life (100A/DC 3.5V~2.4V 25ºC) | 50,000 times or 10 years |
| 17 | Shelf Life | 4 years |
| 18 | Standard for the Termination of Working Life | △C/C≤20% of the initial value, △ESR≤ 100% specified value (25ºC) |
| 19 | Environmental protection | IP54 |
| 20 | Output Terminals | + M8 and - M10 Screw-in hole,Torque 25~28 N.m |
| 21 | Communicate Method | CAN bus communication |
| 22 | Max. Series Connection | 450V/DC |
| 23 | Parallel Connection | No limited |
| 24 | Factory High-pot Test | 5000V/DC |
