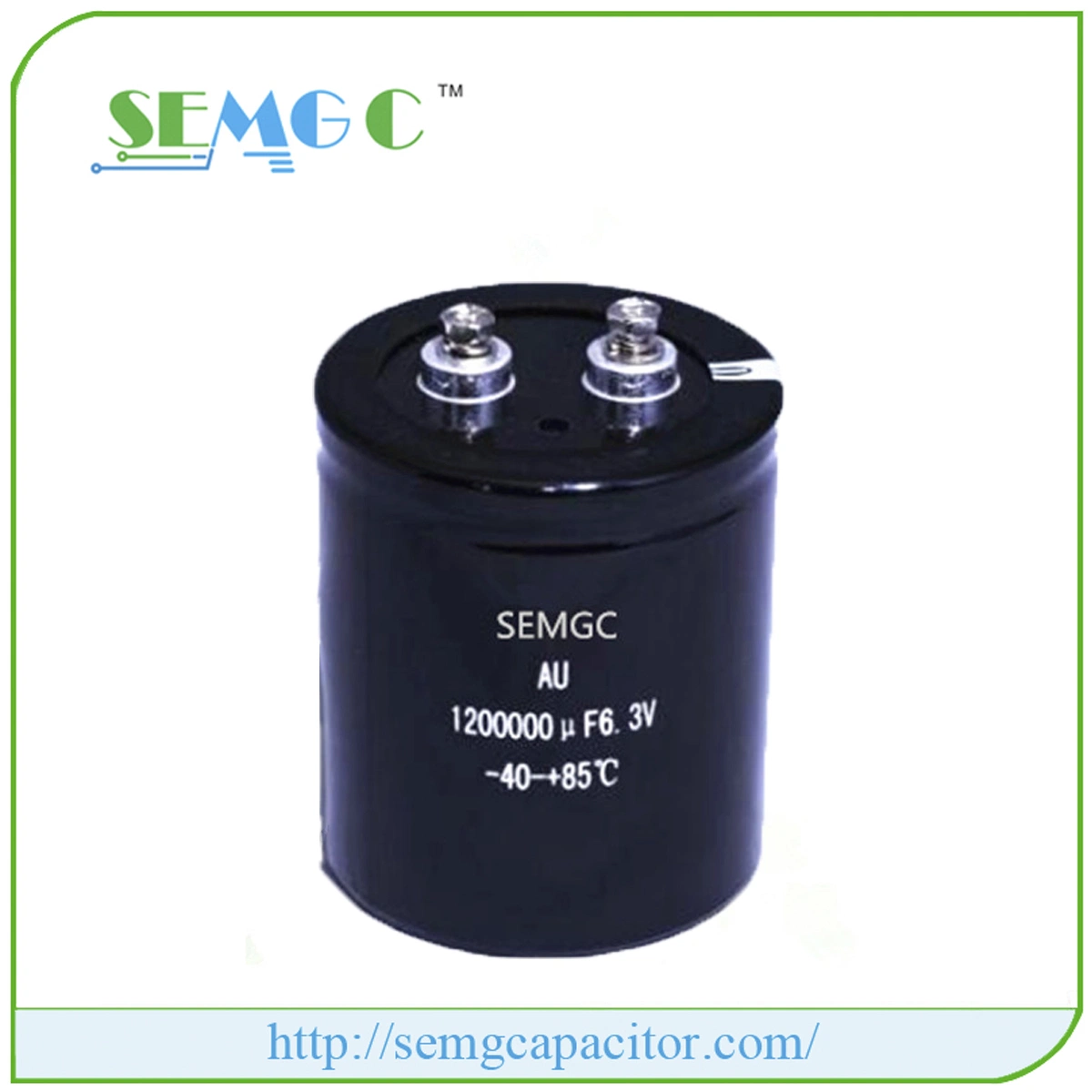

Features
*OEM available
*Operating Temperature Range:-40~105 degree
*Standard:CE RoHS Reach Report
* Electrolytic Capacitor Color:Black/Green/Blue/Red/Orange/Golden Black
* Capacitor Certification: RoHS, ISO 9001:2008, ISO 14001:2004
Specifications
Product Range
*OEM available
*Operating Temperature Range:-40~105 degree
*Standard:CE RoHS Reach Report
* Electrolytic Capacitor Color:Black/Green/Blue/Red/Orange/Golden Black
* Capacitor Certification: RoHS, ISO 9001:2008, ISO 14001:2004
Specifications
| Item | Characteristics | ||||||||||||||||
| Temperature | -40~+105°C | -25~+105°C | |||||||||||||||
| Voltage | 6.3~100VDC | 160~450VDC | |||||||||||||||
| Capacitance | 1~15000μF | 1~470μF | |||||||||||||||
| Leakage Current | I=0.01CV or 3(μA) whichever is greater. | I=0.03CV+10(μA) | |||||||||||||||
| (After rated voltage applied for 2 minutes) | |||||||||||||||||
| Capacitance | ±20% at 120Hz, 20°C | ||||||||||||||||
| Dissipation Factor | WV | 6.3 | 10 | 16 | 25 | 35 | 50 | 63~100 | 160~250 | 350~450 | |||||||
| tanσ | 0.26 | 0.22 | 0.18 | 0.16 | 0.14 | 0.12 | 0.10 | 0.15 | 0.20 | ||||||||
| Tanσ shall be added 0.02 with increase of every 1000μF, when capacitance is over 1000μF. | |||||||||||||||||
| Stability & Impedance | WV/z(120hZ) | 6.3 | 10 | 16 | 25~100 | 160~250 | 350~450 | ||||||||||
| Z-25°C / 20°C | 4 | 3 | 2 | 2 | 4 | 4 | |||||||||||
| Z-40°C / 20°C | 8 | 6 | 4 | 3 | - | - | |||||||||||
| Load Life | Meet following requirements after applying rated voltage 2000hrs at 105°C. | ||||||||||||||||
| Capacitance Change | Within ±20% of initial value | ||||||||||||||||
| Dissipation Factor | Not more than 200% of the specified value | ||||||||||||||||
| Leakage Current | Initial specified value or less | ||||||||||||||||
| Shelf Life | Meet the same requirements as endurance after applying without voltage for 1000hrs at 105°C. | ||||||||||||||||
| Applications | For high quality, reliability application, high CV product. | ||||||||||||||||
Product Range
| Series | Items |
| Vertical Chip Series Capacitors | FV, SV, ZV |
| General Type Series Capacitors | SK, SE, SH |
| Low Profile Series Capacitors | S5, H5, D7, H7 |
| Non-Polar Series Capacitors | RN, SN. |
| Low LC & Impedance Series Capacitors | SB, SC, SJ, SZ |
| Slim Capacitors Series Capacitors | TH, TG, TP |
| Snap-in Series Capacitors | LH, LG, LF, LJ |
