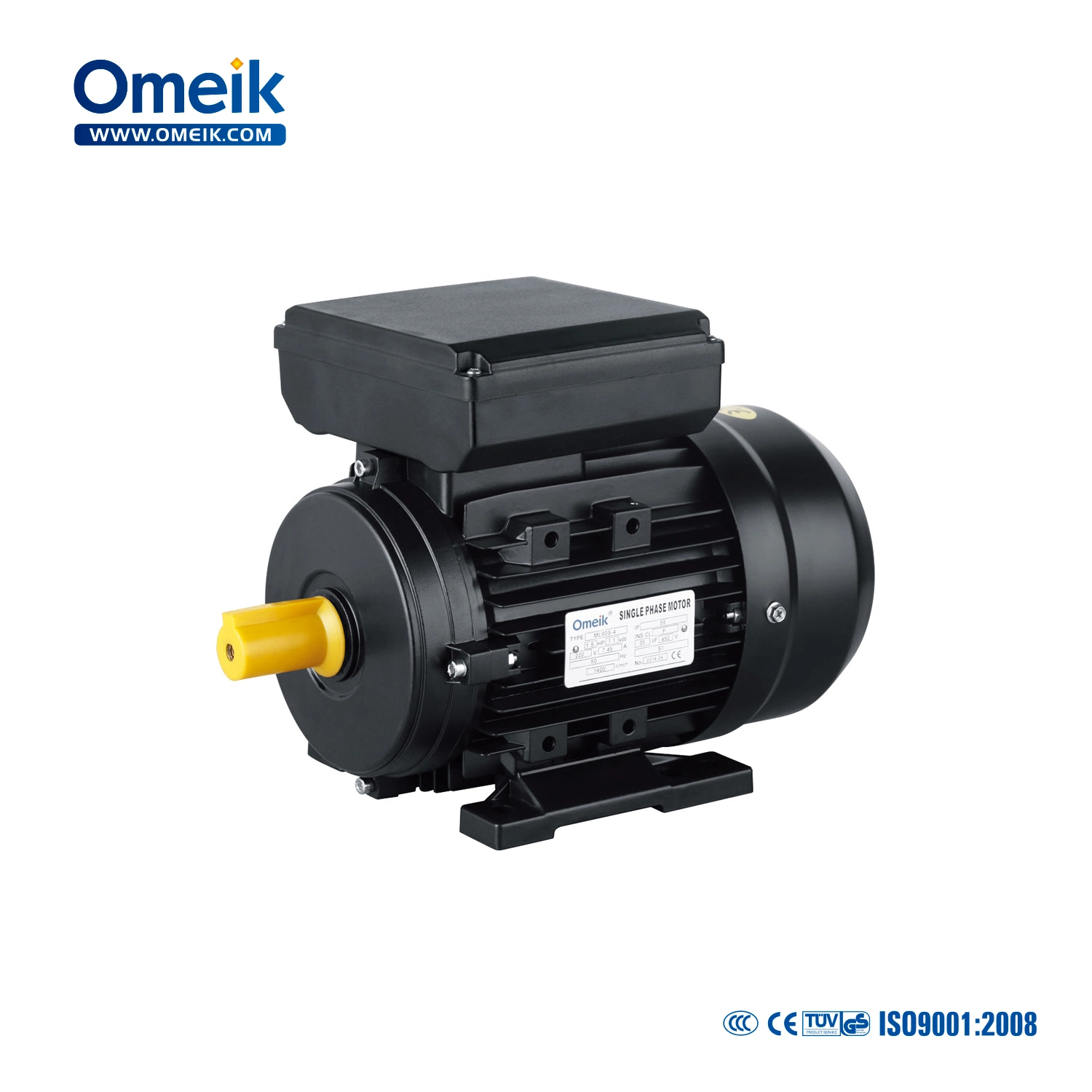

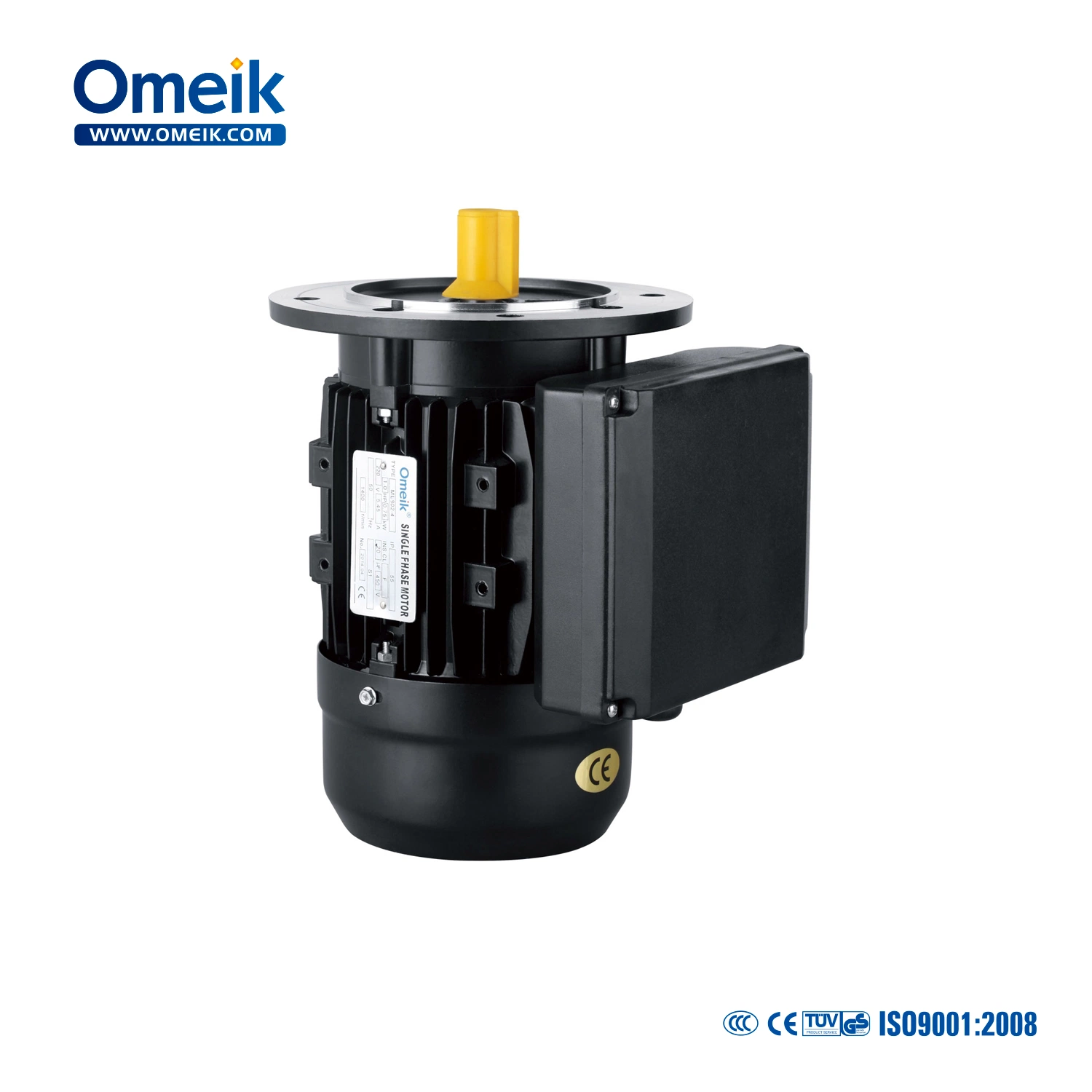

MC rewinding electric motors
Advantage:
1. Good performance
2. Safe & reliable operation
3. Nice appearance
4. Low noise
5. Little vibration
6. Light weight & simple construction
Application:
MC series starter motor can be used on air compressor, pumps, refrigeration, medical apparatus and instruments, and many other machines that need full-load start.
Operating Conditions:
1. Ambient temperature: -15º C≤ ≤ 40º C
2. Altitude: ≤ 1000m
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
8. Cooling method: IC0141
Note: If you have any special requirements, please contact us.
| Model | Output | Current | Power | Eff | Speed | Tstart/Tn | Ist/In | ||
| KW | HP | (A) | Factor | (%) | (r/min) | ||||
| MC711-2 | 0.18 | 0.24 | 1.89 | 0.72 | 60 | 2750 | 3 | 6.5 | 1.8 |
| MC721-2 | 0.25 | 0.33 | 2.4 | 0.74 | 64 | 2770 | 3 | 6.5 | 1.8 |
| MC801-2 | 0.37 | 0.5 | 3.36 | 0.77 | 65 | 2800 | 2.8 | 6.5 | 1.8 |
| MC802-2 | 0.55 | 0.75 | 4.65 | 0.79 | 68 | 2810 | 2.8 | 6.5 | 1.8 |
| MC90S-2 | 0.75 | 1 | 6.09 | 0.8 | 70 | 2820 | 2.5 | 6.5 | 1.8 |
| MC90L-2 | 1.1 | 1.5 | 8.68 | 0.8 | 72 | 2820 | 2.5 | 6.5 | 1.8 |
| MC100L1-2 | 1.5 | 2 | 11.4 | 0.81 | 74 | 2830 | 2.5 | 7 | 1.8 |
| MC100L2-2 | 2.2 | 3 | 16.5 | 0.81 | 75 | 2830 | 2.2 | 7 | 1.8 |
| MC112-2 | 3 | 4 | 21.9 | 0.82 | 76 | 2840 | 2.2 | 7 | 1.8 |
| MC711-4 | 0.12 | 0.16 | 1.88 | 0.58 | 50 | 1350 | 3 | 6 | 1.8 |
| MC721-4 | 0.18 | 0.24 | 2.49 | 0.62 | 53 | 1370 | 3 | 6 | 1.8 |
| MC801-4 | 0.25 | 0.33 | 3.11 | 0.63 | 58 | 1400 | 2.8 | 6 | 1.8 |
| MC802-4 | 0.37 | 0.5 | 4.24 | 0.64 | 62 | 1410 | 2.8 | 6 | 1.8 |
| MC90S-4 | 0.55 | 0.75 | 5.49 | 0.69 | 66 | 1420 | 2.5 | 6 | 1.8 |
| MC90L-4 | 0.75 | 1 | 6.87 | 0.73 | 68 | 1420 | 2.5 | 6 | 1.8 |
| MC100L1-4 | 1.1 | 1.5 | 9.52 | 0.74 | 71 | 1430 | 2.5 | 6.5 | 1.8 |
| MC100L2-4 | 1.5 | 2 | 12.5 | 0.75 | 73 | 1430 | 2.5 | 6.5 | 1.8 |
| MC112-4 | 2.2 | 3 | 17.8 | 0.76 | 74 | 1440 | 2.2 | 6.5 | 1.8 |
SPARE PARTS:
PACKING WAYS
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply others you need.
