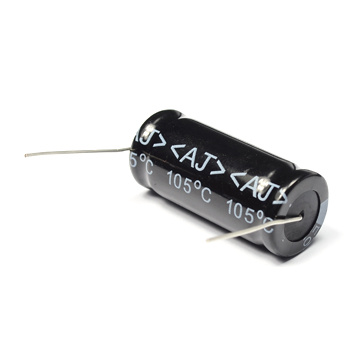

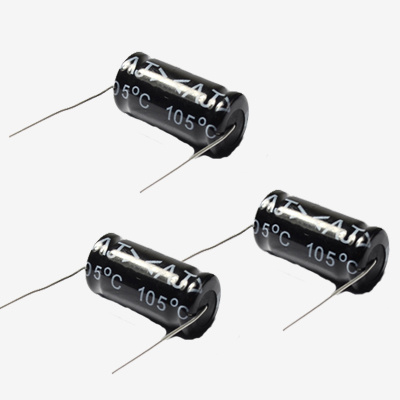

Axial Bi-Polar Aluminum Electrolytic Capacitor 105C





Standard Aluminum Electrolytic Capacitor 125 degree for 2000H
Standard Aluminum Electrolytic Capacitor 125 degree for 5000H
Standard Aluminum Electrolytic Capacitor 130degree for 4000H
Specifications
ItemsCharacteristics
Rated Voltage Range: 6.3~450V. DC
Operating Temperature
Rang-55~+125degree(6.3V~63V); -40~+125degree(80V~450V)
Capacitance Tolerance± 20%(M) (25degree, 100 or 120Hz)
Leakage CurrentI≤ 0.02 CV or 3(μ A) (6.3V~100V) I≤ 0.03 CV +10 (μ A ) (160V~450V)
Where, I: Max. Leakage current(μ A), C: Nominal capacitance(μ F), V: Rated voltage(V)(At 25degree after 2 minutes)
Dissipation Factor tanδ
Rated voltage(VdC)6.31016253550~100160~250350~450
Tanδ (Max. )0.240.200.160.140.120.100.120.15
(25degree, 100 or 120Hz)

A When nominal capacitance exceeds 1000μ F, add 0.02 to the value above for each 1000μ F increase.
Low Temperature
Characteristics
(Max. Impedance Ratio)Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.

Rated voltage(VdC)6.3~1625~6380~100160~250350~450
Z-40degreeZ+degree4610
Z-55degreeZ+20degree54///

When nominal capacitance exceeds 1000μ F, add 1 to the value above for each 1000μ F increase.
Shelf LifeAfter storage at 125degreefor 1000 hours, the capacitors shall meet the following requirements. (500 hours for 350V~450V)

Capacitance Change≤ ± 20% of the initial value
D. F. ( tanδ )≤ 200% of the initial specified value
Leakage Current≤ 500% of the initial specified value
Load LifeAfter application of rated voltage with rated ripple current for the 2000hours at +125degree, the capacitors shall meet the following limits.

Capacitance Change≤ ± 20% of the initial value
D. F. ( tanδ )≤ 200% of the initial specified value
Leakage Current≤ The Initial specified value
OthersMeet Q/RME 40-2008, GB/T 5993-2003
