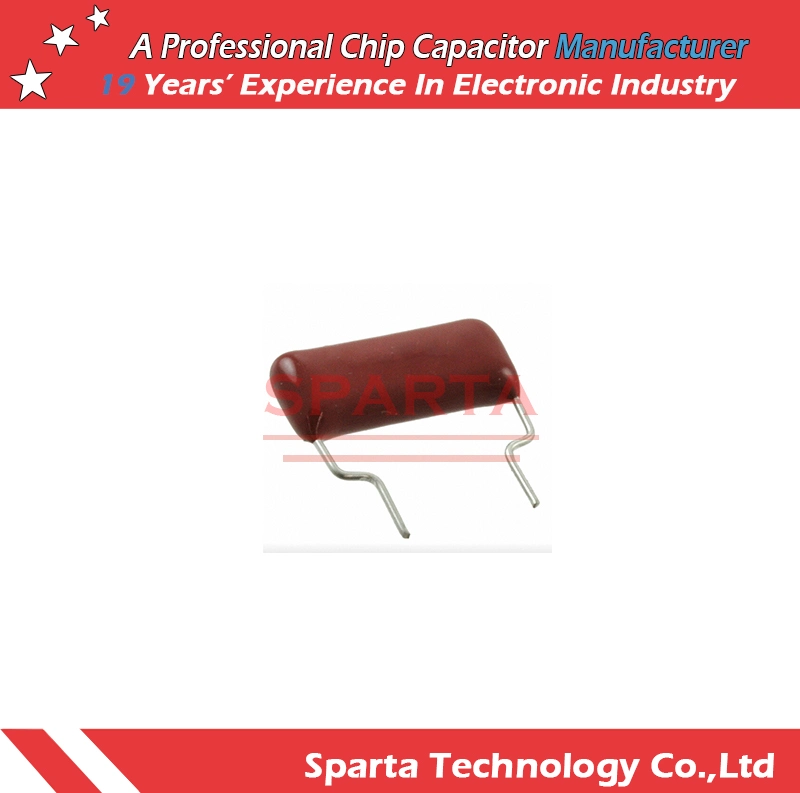

CBB 1000pF Film Capacitor 1600V PP Metallized Radial
Features:
Small size
Excellent electrical characteristics
Low loss
Low Hum Sound Noise
Flame retardant epoxy resin coating
RoHS directive compliant
| Packaging | Bulk |
|---|---|
| Capacitance | 1000pF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 1600V (1.6kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.701" L x 0.205" W (17.80mm x 5.20mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.394" (10.00mm) |
| Applications | High Frequency, Switching |
Packing details
Bulk package(PP bag) , Exporting Standard Packing
