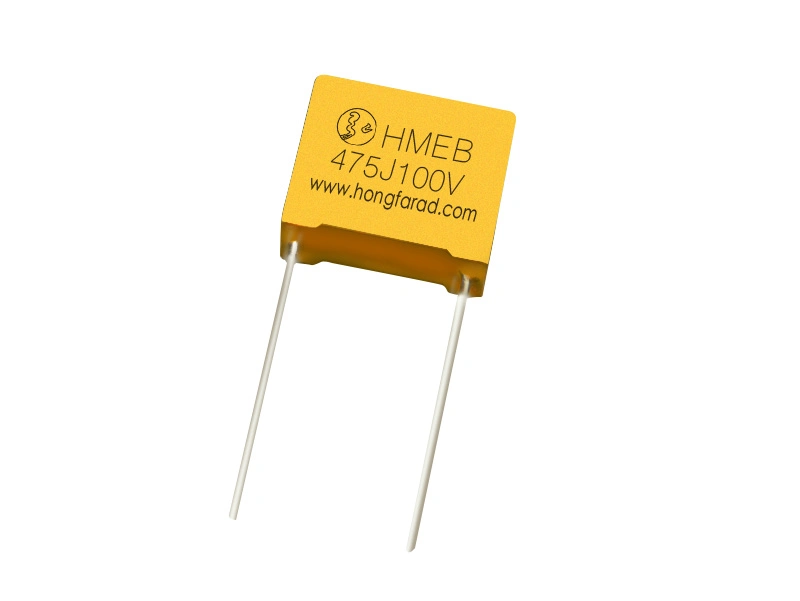

Product Description
Features
1. High reliability
2. Metallized polyester film, non-inductive wound construction
3. Plastic case(UL94 V-0) , Epoxy resin sealing
Typical Applications
1. By-passing, blocking, coupling, decoupling
2. Pulse, logic, timing, oscillator, circuits
3. Interference suppression in low voltage application
Specifications
Reference Standard: GB/T 7332(IEC 60384-2)
Climatic Category: 40/105/21
Rated Voltage : 100V,160V,250V,400V,630V
Capacitance Range: 0.001uf~10.0uf
Capacitance Tolerance: ±5%(J) , ±10%(K) , ±20%(M)
Voltage Proof : 1.6Ur(5s)
Dissipation Factor: ≤1.0% (at 1KHz) ≤1.5% (at 10KHz) ≤3.0% (at 100KHz)
Insulation Resistance: ≥90 000MΩ, Cr≤0.33uf
≥3 000s Cr>0.33uf (20oC,100V,1 min)
Outline Drawing
Dimension(mm)
Why do you choose Hongfarad capacitor?
High quality commitment
Competitive prices
Professional factory with more than 10 years experience
Fast lead time and best after service
Strong research center & strong sales
Quick response from sales representatives
One stop solution for all kind of customers
Welcome to visit our factory!
Our Laboratory
Question 1 : Are you a manufacturer or a trading company ?
Answer : We are a manufactuer specialized in metalized film capacitor with over 10 years experience.
Question 2 : How can I get some samples ?
Answer : We are honored to offer you samples for free, but the new clients are expected to pay the express cost, and the charge will be deducted from the payment for formal order.
Question 3 : Can your factory print my logo on the goods ?
Answer : Yes, we can print your own logo on the goods or the packing box.
Question 4 : What's your MOQ of this product?
Answer : MOQ is 3000 pcs, if less, please check with us firstly.
Question 5 : What's your delivery time?
Answer : It is about 2-3 weeks, if your goods are required urgently, please contact us firstly.
