Customised Metallized Polypropylene Film Capacitor (MKPD-MC)
Cylinder DC-Link Busbar Capacitors
Features and Application :
» Metallized polypropylene film, Cylinder alumnium shell package
» Excellent self-healing property
» Small size, tinned lead wire for installation
» High-insulation resistance
» Flame retardation Epoxy resin encapsulation (UL94 V-0)
» Low Ls and ERS, non-inductive structure
» Endurable high frequency circuit, for high DV/DT
» Suitable for DC-LINK Busbar, Inverter for wind power/solar power, SVG, APF filter
» Widely used in HEV, EVchanging circuit, Power supply
» Long lifetime
Specifications:
Advantage:
» UTX specialize in film capacitor for over 24 years since 1996 founded in Taiwan
» 1 Industrial Park, 2 Film Capacitor Bases in East and South-east of mainland China
» Cooperated with over 60 distribution agents, 300 famous end users in global market
» UTX own whole chain for film capacitor manufacture from film metallizition, epoxy box molding Injection to full inspection of finished products
» UL/CUL, SGS, VDE,CQC, CE, KC certificated, quality is reliable
» Customized for special industrial and new energy field
» Professional product Development and Validation Engineering Laboratory
» 100% inline Photoelectric Inspect & Test before packing
» Competitive quality and reasonable price
» Abundant inventory and short delivery period: 5 days for stork products, 15 days for regular orders, 30 days for OEM or Customized capacitors
Certificates:
Factory Show:
Products show:
More details please ask us for datasheets!
Cylinder DC-Link Busbar Capacitors
Features and Application :
» Metallized polypropylene film, Cylinder alumnium shell package
» Excellent self-healing property
» Small size, tinned lead wire for installation
» High-insulation resistance
» Flame retardation Epoxy resin encapsulation (UL94 V-0)
» Low Ls and ERS, non-inductive structure
» Endurable high frequency circuit, for high DV/DT
» Suitable for DC-LINK Busbar, Inverter for wind power/solar power, SVG, APF filter
» Widely used in HEV, EVchanging circuit, Power supply
» Long lifetime

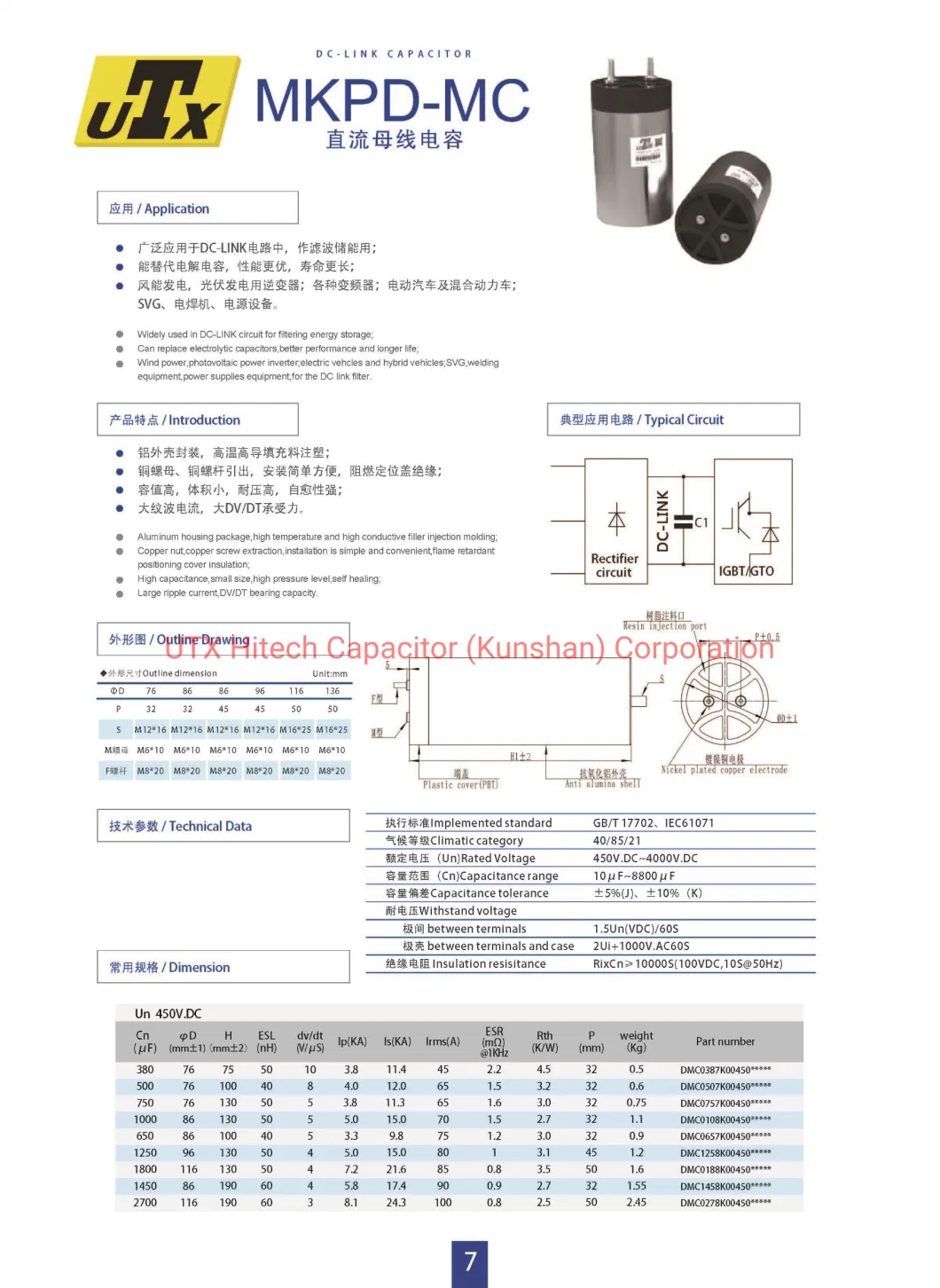

Specifications:
| » Reference Standart | IEC 61881, GB/T 17702, |
| » Climatic Categaory | 40/85/21 |
| » Operation Temp. Range | -40~85ºC |
| » Rated Voltage | 450~4000VDC |
| » Capacitance Range | 10μF~8800μF |
| » Capacitance Tolerance | ±5%(J), ±10%(K) |
| » Voltage Proof | 1.5Un(VDC)/60s, Between Terminals 2*Ui+1000(VAC 50Hz)/60s, Between Terminal and Case |
| » Insulation Resistance | RixCn≥10000s (25±5ºC, 100VDC, 60s) |
Advantage:
» UTX specialize in film capacitor for over 24 years since 1996 founded in Taiwan
» 1 Industrial Park, 2 Film Capacitor Bases in East and South-east of mainland China
» Cooperated with over 60 distribution agents, 300 famous end users in global market
» UTX own whole chain for film capacitor manufacture from film metallizition, epoxy box molding Injection to full inspection of finished products
» UL/CUL, SGS, VDE,CQC, CE, KC certificated, quality is reliable
» Customized for special industrial and new energy field
» Professional product Development and Validation Engineering Laboratory
» 100% inline Photoelectric Inspect & Test before packing
» Competitive quality and reasonable price
» Abundant inventory and short delivery period: 5 days for stork products, 15 days for regular orders, 30 days for OEM or Customized capacitors
Certificates:

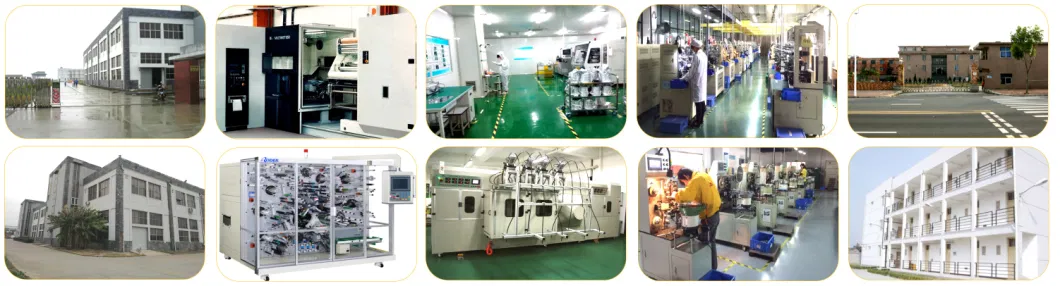

Factory Show:
Products show:
More details please ask us for datasheets!
